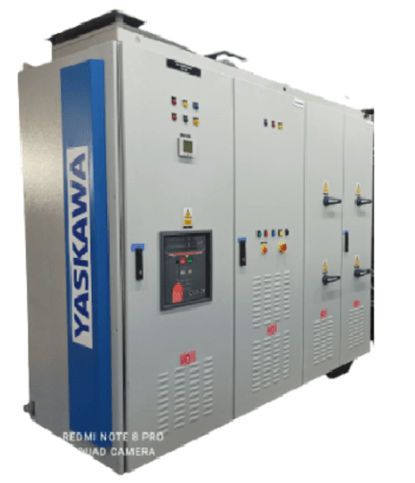

Engineered Panel Solutions
Engineered Panel Solutions deliver reliable, efficient, and noise-free VFD panel designs compliant with international standards. Featuring advanced cooling, modular construction, robust components, and seamless maintenance, these panels ensure optimal performance, durability, and on-time delivery for diverse industrial applications.
- Engineered Panels for all ratings of VFDs
Ratings:
Enquire- Designed as per IEC: 60439 IEC: 60529 and tested as per IEC 61800-2, IEC 60146-1-1 (IEC: 60439 – Low Voltage Switchgear and Control Gear assemblies & IEC: 60529 – Ingress Protection for enclosures)
- Weekly project update to Customer
- Semi Modular panel construction – Flexibility on inter-component assembly
- On-time delivery (OTD) record for last 4 years
- Guaranteed Noise free solution by proper segregation/routing of Power, control & communication cables
- Best in class cooling practice
- Ensured 100% Quality assurance on each process
- Easy accessibility of control & power terminals – Field cable connections
- Stress-free accessibility/removal of VFD & other components during maintenance activity
- Proper component arrangements
- Swing PWM function to decrease noise at low carrier frequencies
- Pre-maintenance function
- Modbus communication
- Reduction in mechanical parts to increase MTBF
- Cooling fan replacement without tools
- MTBF: 28 years
- Short Circuit Current Rating (SCCR): 30kA rms symmetrical
- Built-in dynamic braking transistor
- Common programming with all other Mogu drives
- Swing PWM function to decrease noise at low carrier frequencies
- Pre-maintenance function
- Modbus communication
- Reduction in mechanical parts to increase MTBF
- Cooling fan replacement without tools
- MTBF: 28 years
- Short Circuit Current Rating (SCCR): 30kA rms symmetrical
- Built-in dynamic braking transistor
- Common programming with all other Mogu drives
Design & Manufacturing of VFD Panels are compliance to below IECs
Strength & Facility
- IP00
- IP42
- IP54
- IP55
