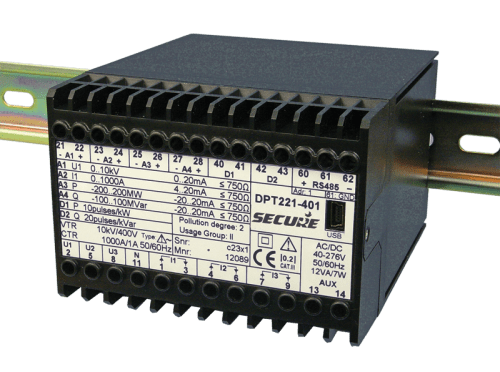

DPT Digital Programmable Transducer
Our family of DIN-rail programmable transducers (DPT) measure a wide range of electrical parameters and generate equivalent analogue output signals suitable for interfacing with instrumentation and control systems. DPTs are available with up to four analogue outputs, up to two digital outputs and Modbus communication functionality. All the outputs are galvanically isolated and can be programmed with easy-to-use ConfigView software. Any of the measured parameters can be assigned to the analogue outputs and can be read out via the optional Modbus connection. ConfigView can also be used to configure the connection to the measured circuit for single-phase, three-phase three-wire, three-phase four-wire, balanced or unbalanced load. DPTs comply with IEC 60688 and are available in accuracy classes 0.5 and 0.2. DPT support wide range of voltage, current and auxiliary supply.
Enquire- Fully programmable inputs & outputs
- Accuracy class 0.5 or 0.2
- True root mean squared (RMS) measurement
- Up to 4 analogue outputs (voltage or current signals)
- Up to 2 digital outputs only for energy parameters
- Optional Modbus communications via RS-485 port
- DIN-rail mounting
- USB Mini port for local programming
- Meter cover and terminal cover open detection
- RS232 port compatible with meter-powered modem
- Instrumentation panels
- Control systems
- Electrical distribution panels
- Transmission systems and generators
- SCADA systems
